Nonlinear Gain Amplifier (CB6130E)

Details
Written by: Newton C. Braga

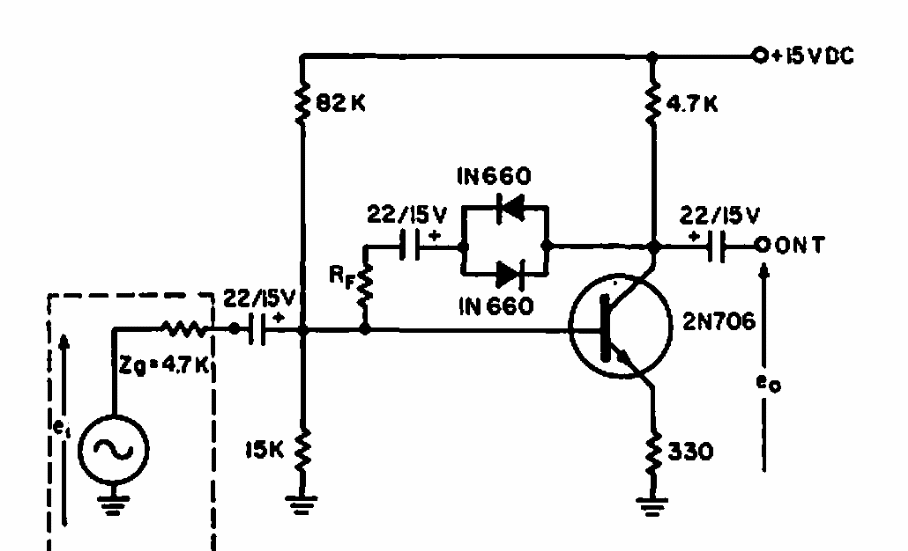

    This nonlinear gain circuit was found in a 1965 Electronic Design. The configuration can be used as a basis for modern designs with equivalent transistors.




| Clique na imagem para ampliar |
