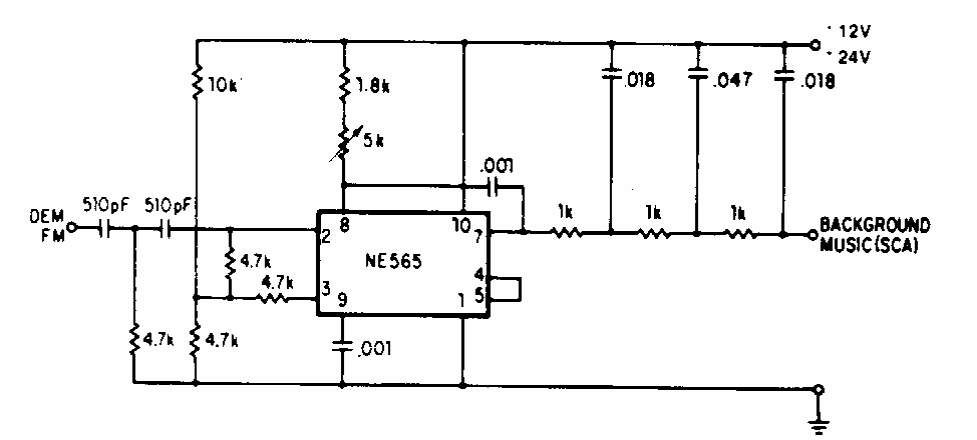

This FM advertising suppressor (SCA) decoder circuit was suggested by Signetics in a 1980s documentation. The circuitry decodes the 67 kHz signal. The integrated circuit used is of the time.
| Clique na imagem para ampliar |
SCA Decoder (CB6210E)
- Details
- Written by: Newton C. Braga
