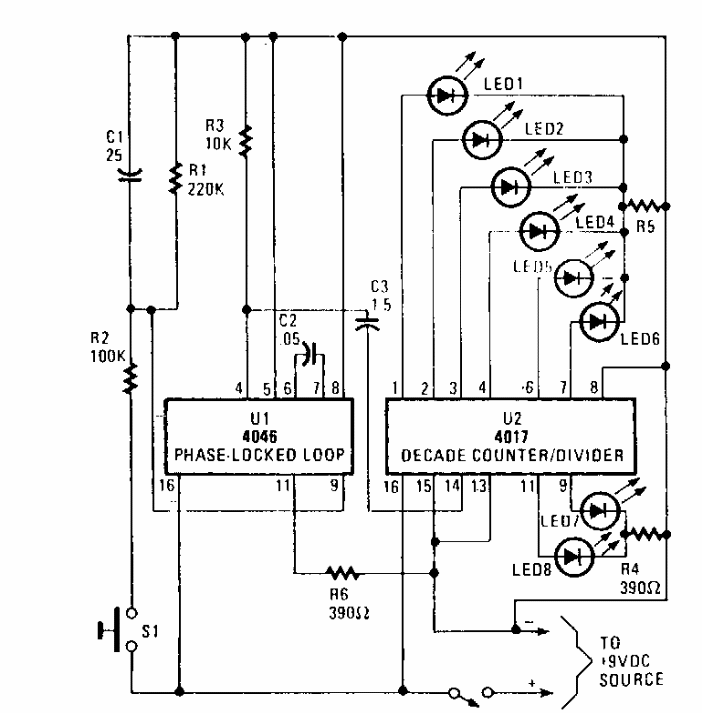

This circuit that draws 1 out of 8 LEDs was found in an 80's American documentation. The circuit can also work with an astable using the 555 instead of the 4046 which is not a common component today.
| Clique na imagem para ampliar |
Electronic Roulette (CB6362E)
- Details
- Written by: Newton C. Braga
