50 to 150 MHz Oscillator (CB6513E)

Details
Written by: Newton C. Braga

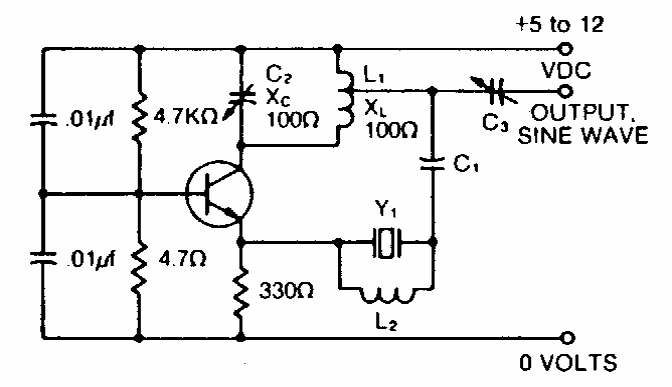

    We find this oscillator in a 1980s documentation. The frequency depends on the crystal and the transistor used must be able to oscillate at the desired frequency.
