This circuit was found in a General Electric documentation from 1966. It uses discrete components of the time that can be replaced by modern equivalents.
| Clique na imagem para ampliar |

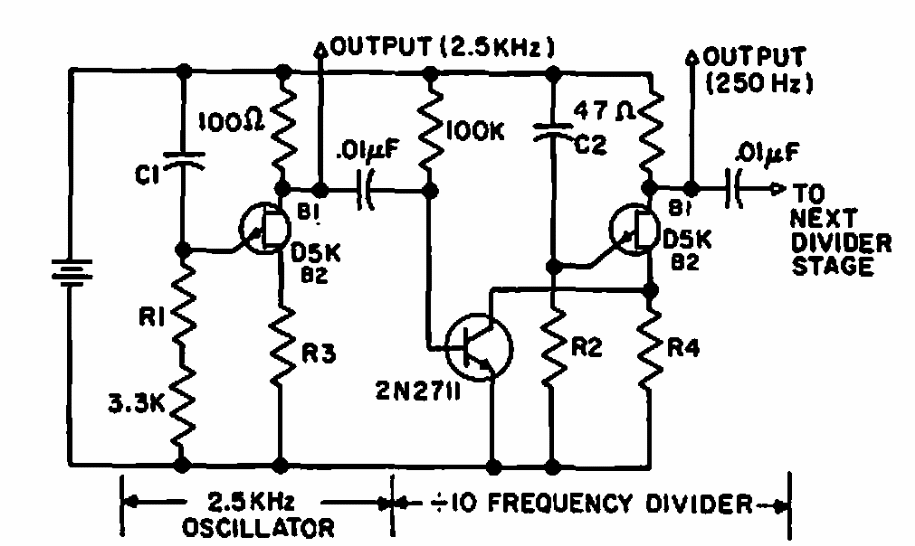

Divider by 10 (CB6898E)
- Details
- Written by: Newton C. Braga
This circuit was found in a General Electric documentation from 1966. It uses discrete components of the time that can be replaced by modern equivalents.
