This filter was obtained from Radio Electronics from the 80's. The configuration applies to any operational. The circuit is for signals in the audio range. The feed must be symmetrical.
| Clique na imagem para ampliar |

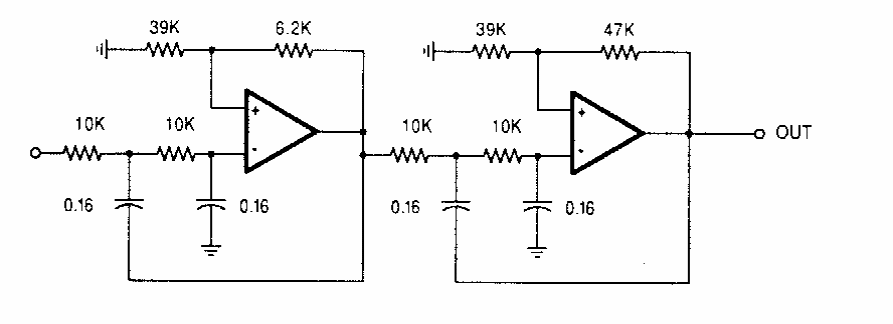

Fourth order low pass Sallen Key filter (CB6940E)
