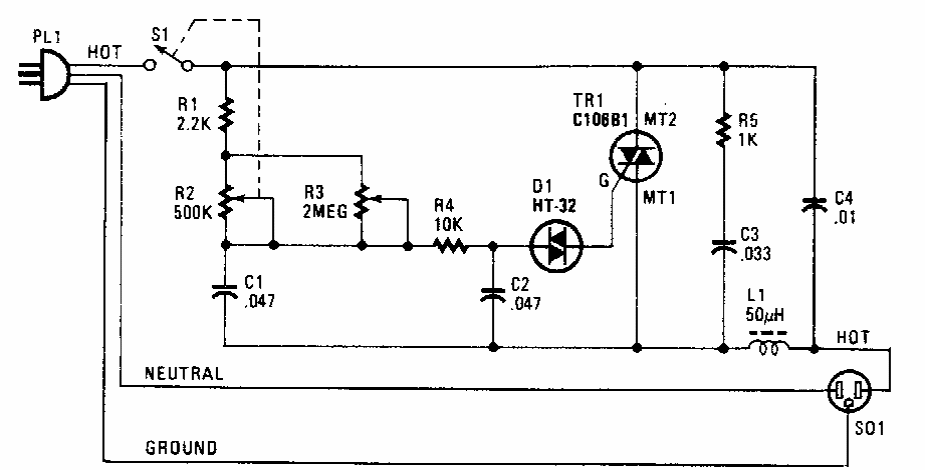

This circuit can be used with motors or resistive loads, such as heaters and incandescent lamps. The circuit is from Popular Electronics from the 90s. All components used are common.
| Clique na imagem para ampliar |
Dimmer or speed control (CB7041E)
- Details
- Written by: Newton C. Braga
