TTL Oscillator (CB6150E)

Details
Written by: Newton C. Braga

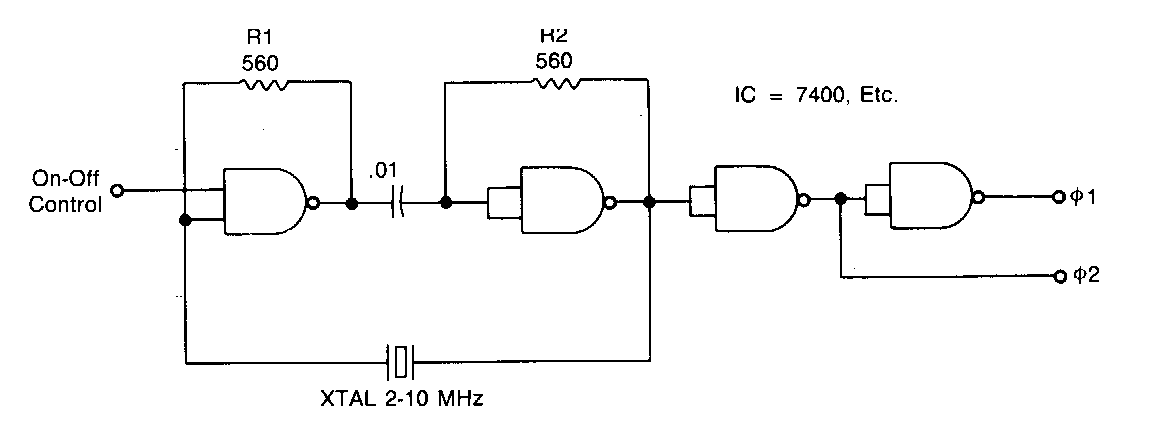

     This oscillator can generate 2 to 10 MHz signals and was found in an American 1980s documentation. The circuit is stable and its supply voltage is 5 V.




| Clique na imagem para ampliar |
