High Voltage DC Converter (CB6574E)

Details
Written by: Newton C. Braga



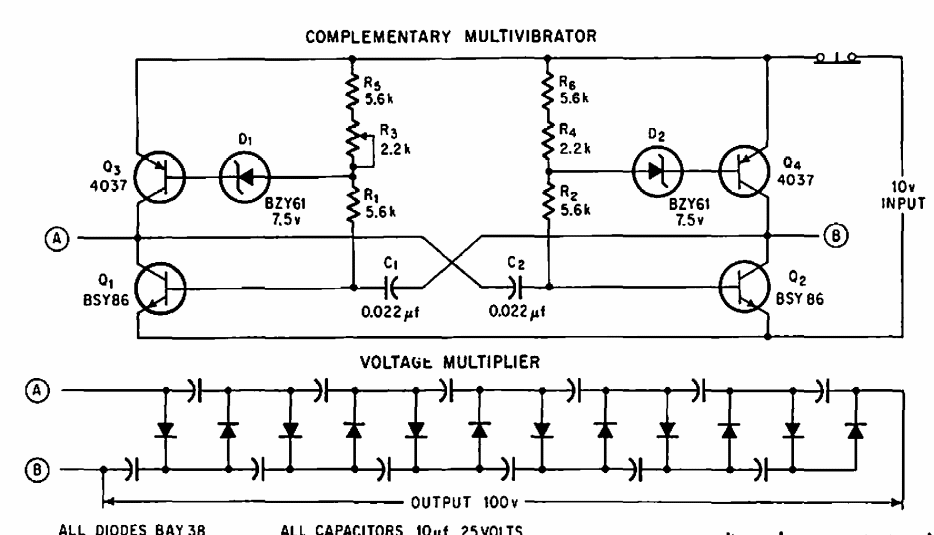

    This 1969 circuit generates a high voltage that reaches 100 V from 16 V. The power is of the order of 280 mW. The number of diodes determines the voltage multiplication.
