26 ns delayed pulse (CB6660E)

Details
Written by: Newton C. Braga

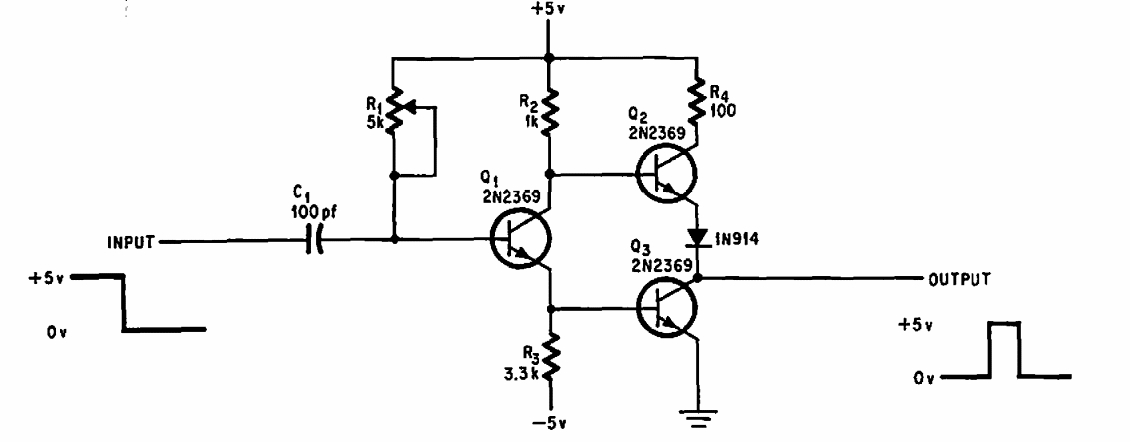

     Found in a 1968 US publication, this circuit produces a delayed pulse with the negative transition of the input signal. The circuit can be used as a shield.
