Flasher for the power grid (CB6797E)

Details
Written by: Newton C. Braga

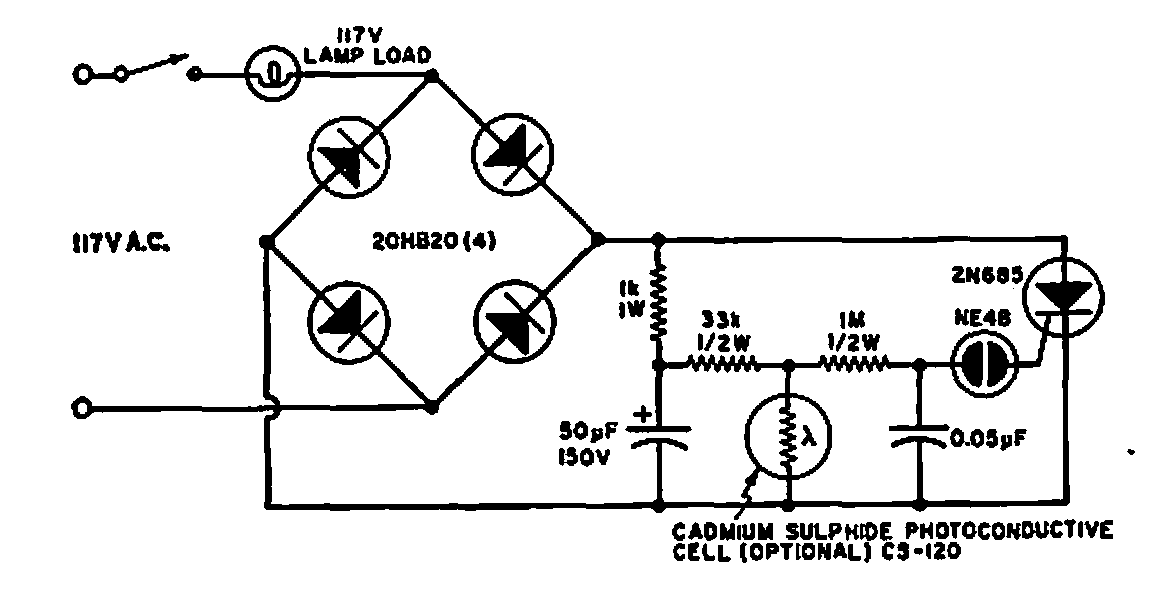

     Found in an Electronics World of 1968 this circuit can use current SCRs and the diodes are according to the lamp. The Circuit only works with incandescent lamps.
