Biestable R S (CB6818E)

Details
Written by: Newton C. Braga

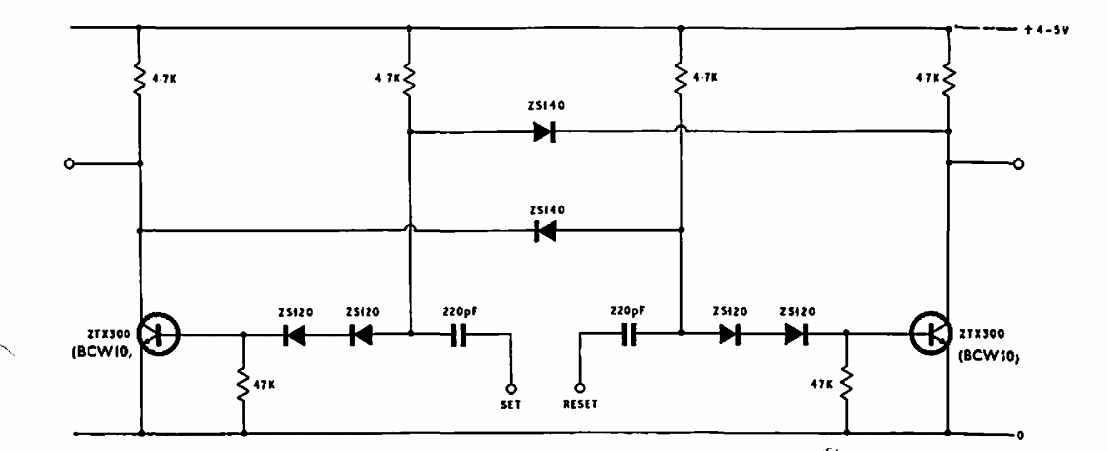

     This circuit is from an English documentation from 1969. The circuit can be designed based on modern equivalent transistors. Diodes are general purpose types.






| Clique na imagem para ampliar |
