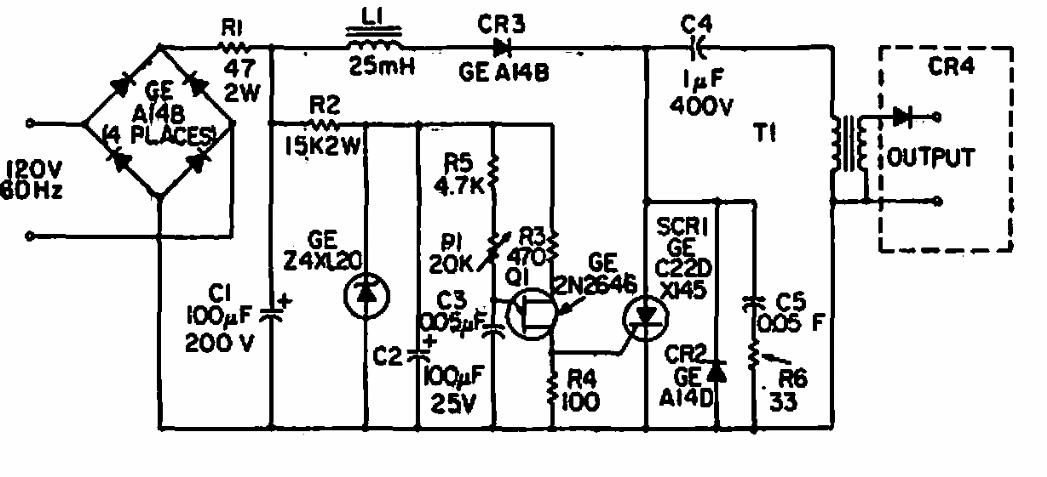

This circuit was originally suggested by General Electric in 1966 documentation to power decorative high voltage neon lamps. The transformer is 7,500 V for a current of 4 mA.
| Clique na imagem para ampliar |
High voltage generator (CB7076E)
