Limited range control (CB7221E)

Details
Written by: Newton C. Braga

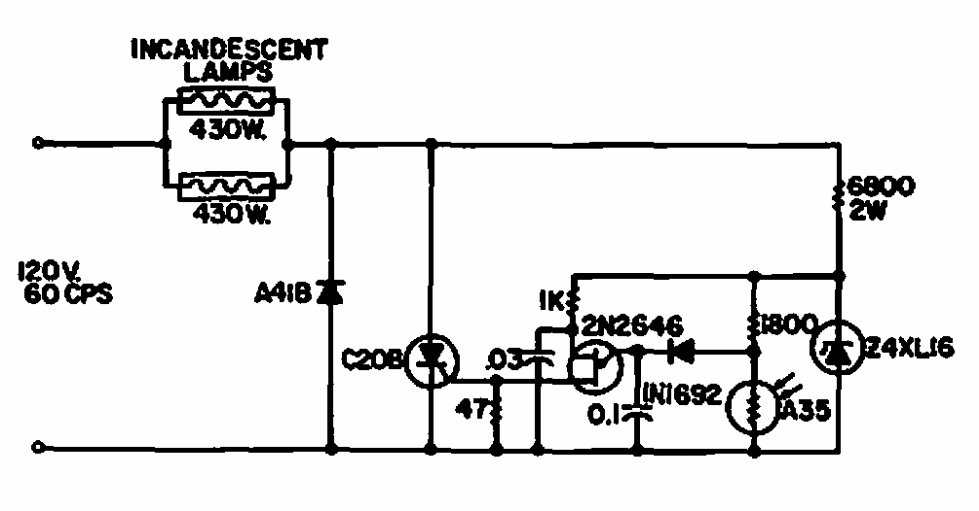

     Suggested by General Electric in 1965 documentation, this circuit controls the current at a load from half to maximum power. The circuit is for loads up to 900 W with the indicated components.
