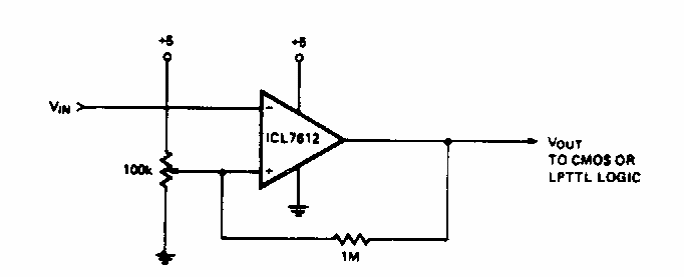

We found this circuit in an 80s Intersil documentation. Modern equivalent operating systems can be used. The potentiometer adjusts the detection level.
| Clique na imagem para ampliar |
Voltage Level Detector (CB6216E)
- Details
- Written by: Newton C. Braga
