6V battery charger (CB6400E)

Details
Written by: Newton C. Braga

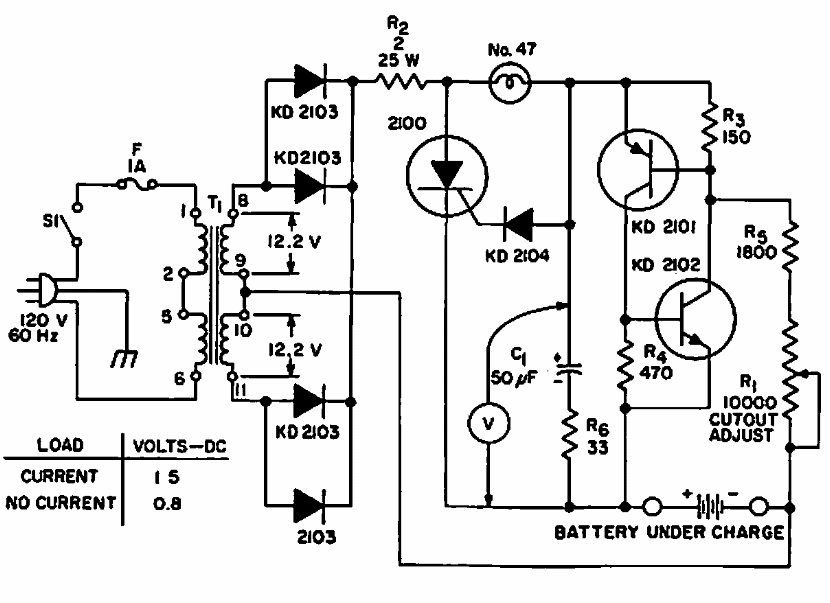

    This circuit was found in a 1967 RCA manual. The transistors are of the time. The adjustment is made to read 7.15 V on the charged battery and the charging current is 3.2 A.
