Hysteresis Light Alarm (CB6436E)

Details
Written by: Newton C. Braga

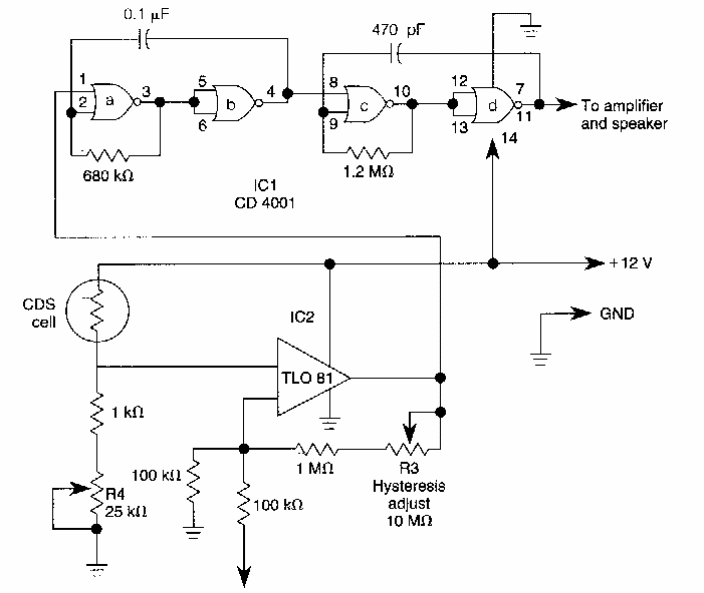

     This circuit is from a 90s documentation. It has a hysteresis and uses a light sensing bridge. The circuit generates a 1000 Hz modulated 10 Hz signal. The signal must be applied to an amplifier.
