Smoke Detector (CB6526E)

Details
Written by: Newton C. Braga

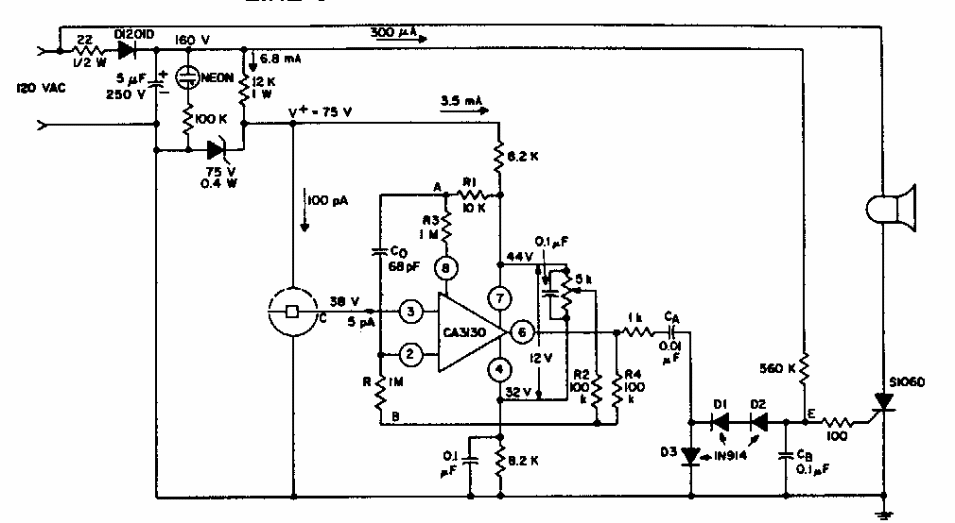

     Operated directly from the power grid, this detector was found in an 80's RCA documentation. The sensor is an ionization chamber. The SCR triggers a warning siren.
