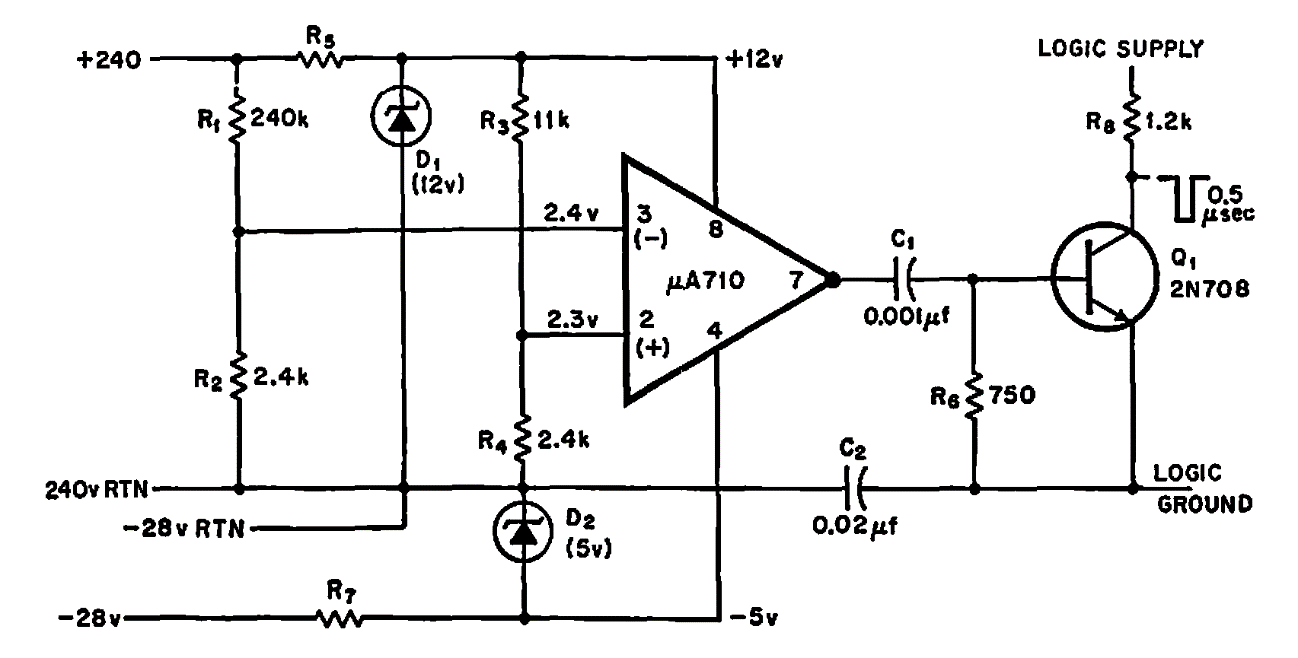

Control logic circuit (CB6547E)

Details
Written by: Newton C. Braga



    This high voltage circuit was found in a 1970 documentation. The integrated one is of the time and modern equivalents can be tested. The resistors of the voltage reducing system must be calculated.
