Light operated switch (CB6856E)

Details
Written by: Newton C. Braga

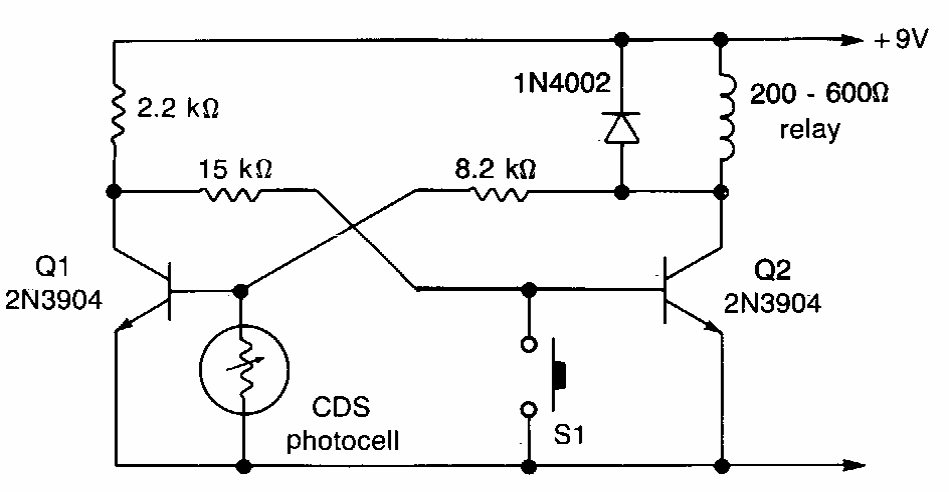

     This circuit is from American documentation from the 1980s. The transistors are general purpose types and the relay can be 6 or 12 V depending on the supply voltage.
