Analog Switch (CB6918E)

Details
Written by: Newton C. Braga

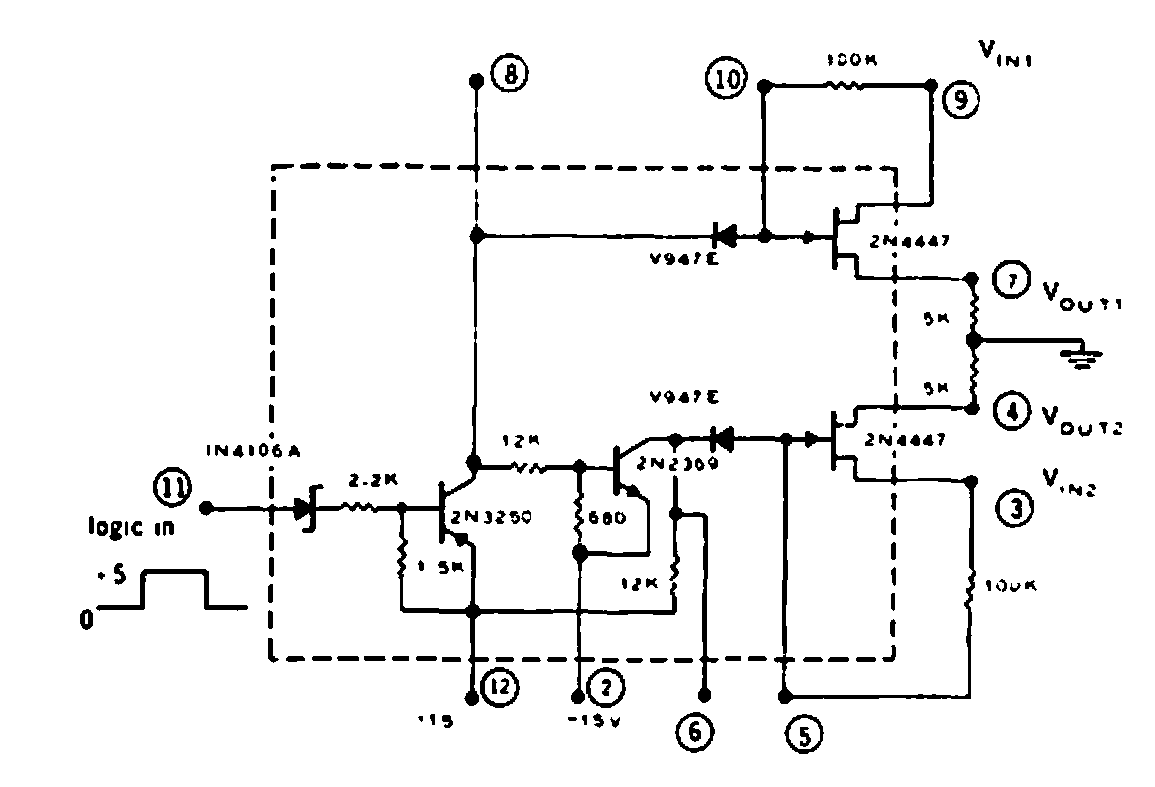

     This old version of analogue switch was found in a 1969 documentation. Components of the time are used, with emphasis on the CAG7 integrated circuit. It is worth as a reference.
