RF Amplifier (CB6129E)

Details
Written by: Newton C. Braga

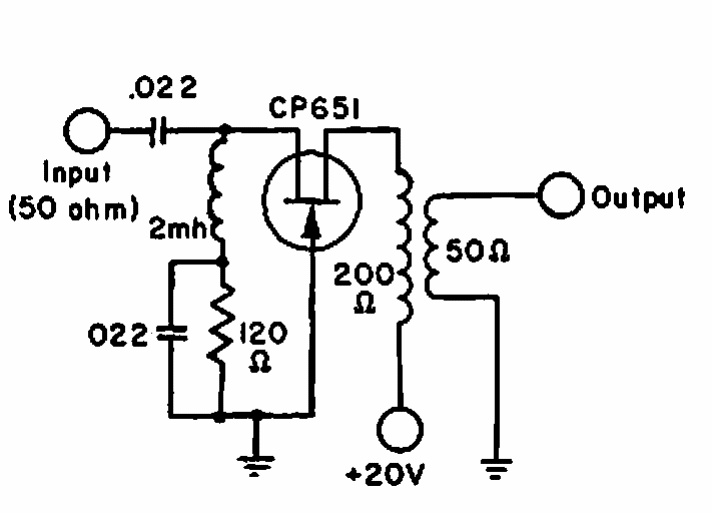

    This RF amplifier step has a dynamic range of 140 dB and can amplify signals from 0.5 to 40 MHz. FET is old, but modern equivalents can be used.
