Crystal Pierce Oscillator (CB6149E)

Details
Written by: Newton C. Braga

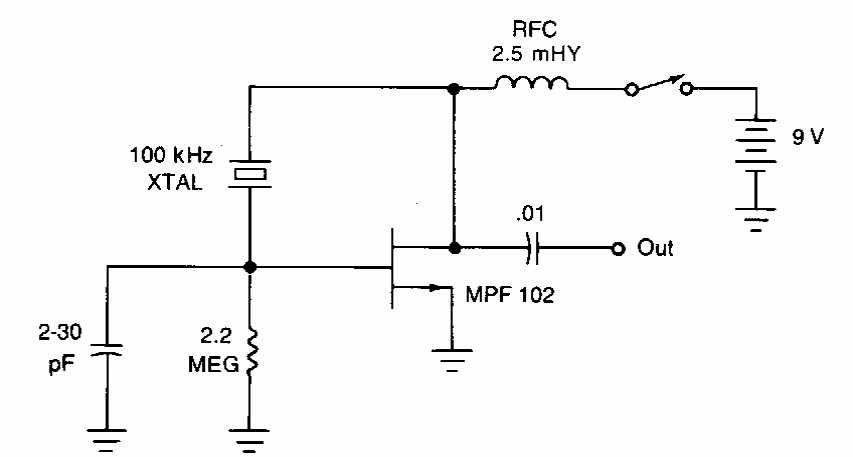

     This circuit uses a 100 kHz crystal, but nearby frequencies can be obtained with appropriate crystals. Components are still common today.
