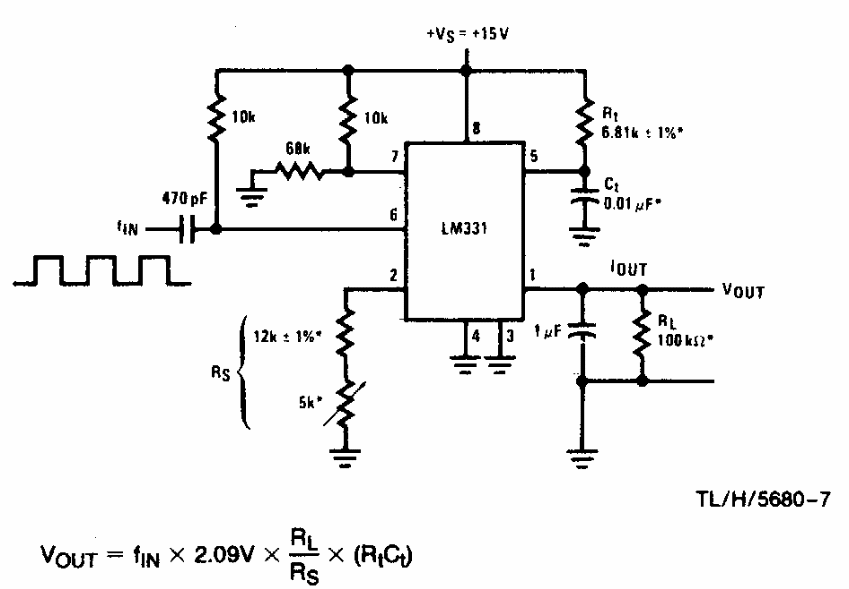

Found in a 1980s documentation, this circuit uses as base a component of the era. The formula for determining the conversion is given next to the diagram.
| Clique na imagem para ampliar |
Frequency to voltage converter (CB6345E)
