Long period integrator (CB6843E)

Details
Written by: Newton C. Braga

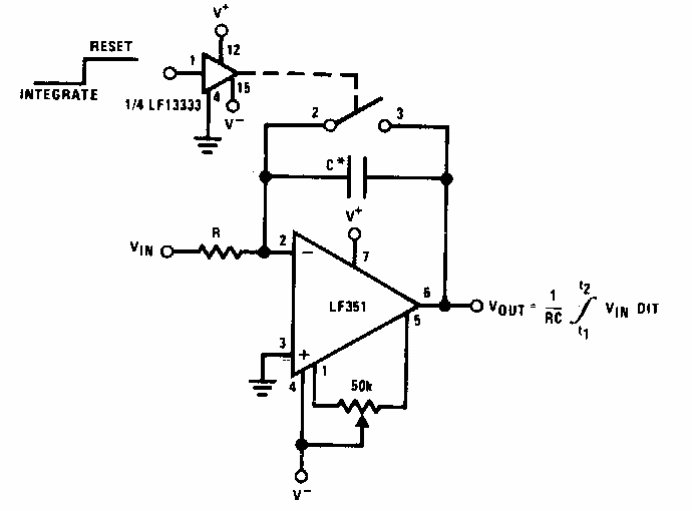

    Suggested by National Semiconductor in documentation from the 90s, this circuit makes use of an operational of the time. The configuration can be applied to modern equivalent components
