FM Generator (CB6996E)

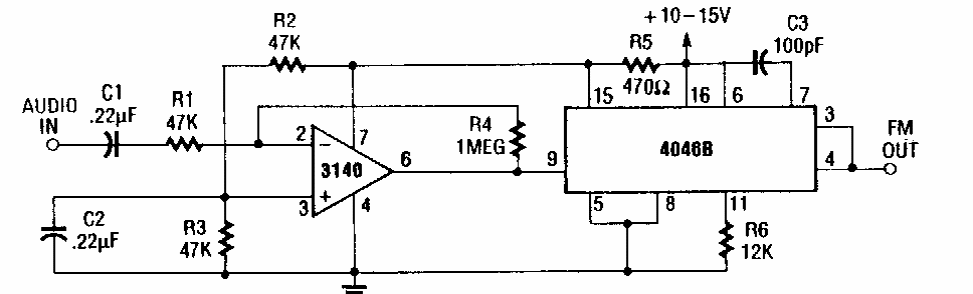

We found this circuit in a 90s Radio Electronics. The circuit generates frequency-modulated 220 kHz signals. The components used are still common.

| Clique na imagem para ampliar |

10 Minute Timer (CB1501E )
The circuit shown in the figure was found in a 1974 publication. The field effect transistor may...
DC Motor Reversal with Transistors (2) (CB11602E)
I found this circuit in an English publication from 1989. This configuration can be mounted with...
Spy FM Transmitter with Varicap (CB14870E)
We found this circuit in a small espionage manual from 1993. The components are current, and the...
