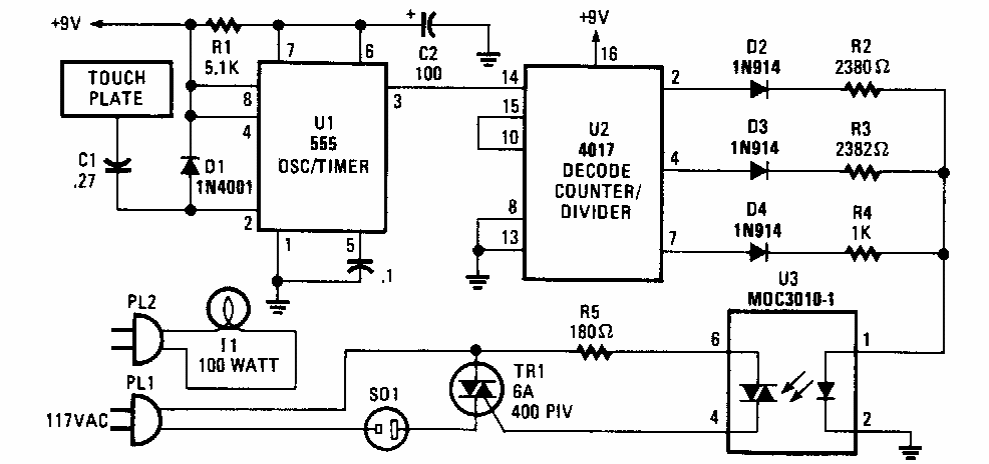

three-level touch control (CB7040E)

Found in Popular Electronics this circuit uses common components to control an incandescent lamp with three levels of intensity

| Clique na imagem para ampliar |
