Bistable relay (CB7159E)

Details
Written by: Newton C. Braga

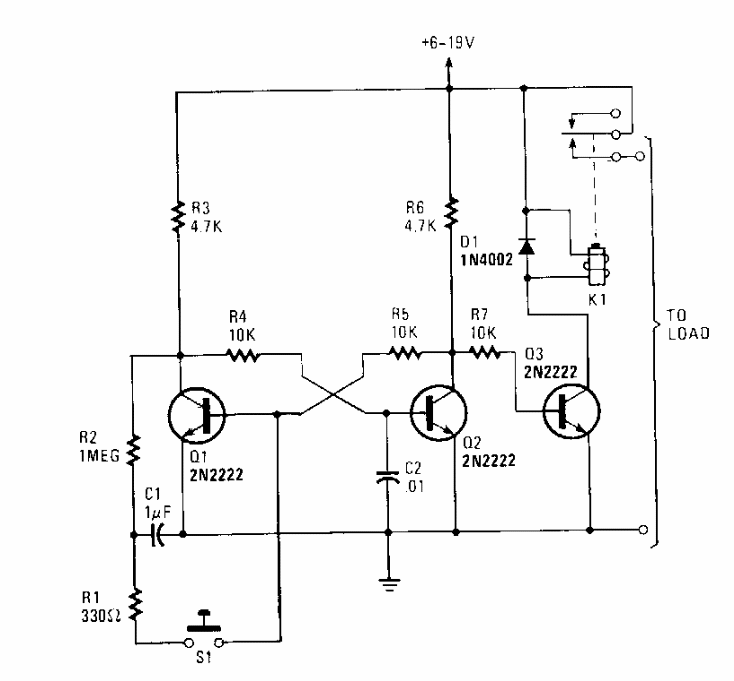

    Found in a Hands On Electronics from the 80's, this circuit activates a relay with alternating touches on the push-button. The relay depends on the supply voltage.
