RF Sniffer (CB6236E)

Details
Written by: Newton C. Braga

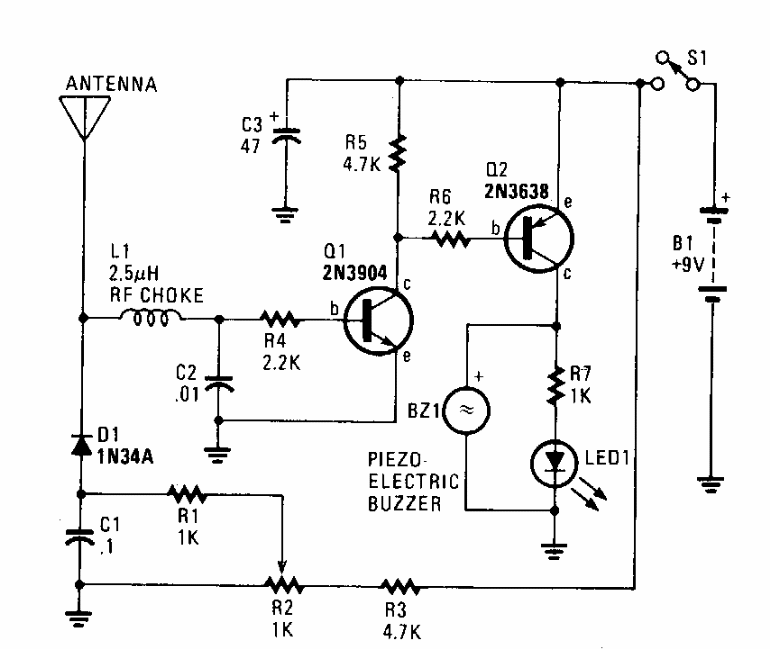

   This is a field strength meter found in an 80's Hands On. The circuit operates at frequencies up to 500 MHz and has a buzzer as its indicator. Can be used as a detector for spy transmitters.




| Clique na imagem para ampliar |
