Delayed Alarm (CB6418E)

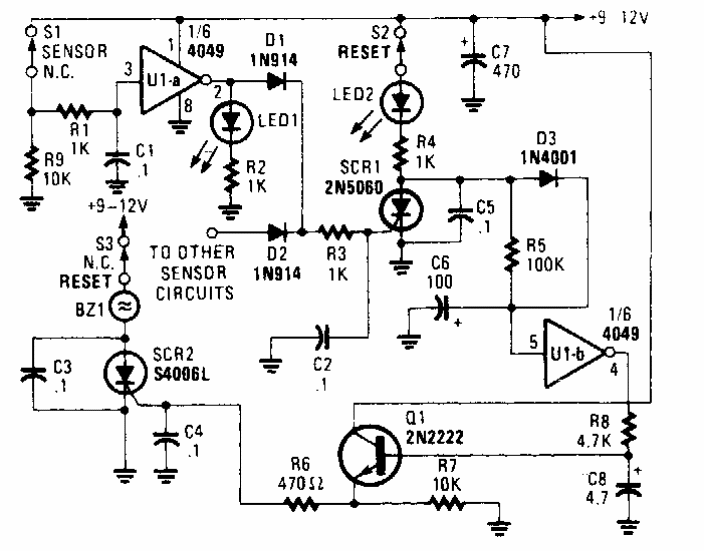

This alarm circuit has a trigger delay system. The circuit was found in a Popular Electronics of the 90s. The components are common.
