Two-state sequential (CB6566E)

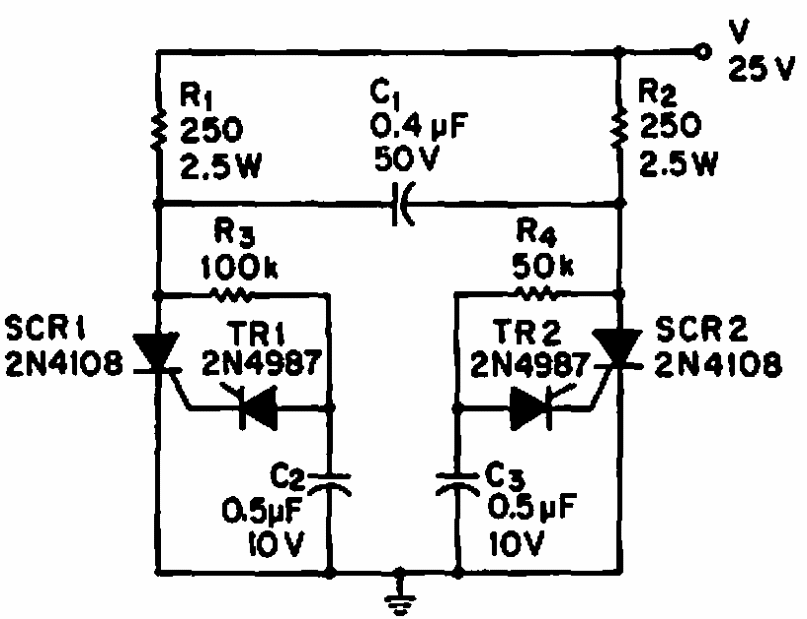

Found in a 1970 documentation, this SCR bistable can be implemented with modern equivalent SCRs. Observe the controlled loads.

| Clique na imagem para ampliar |

1 V Precision Reference (CB1285E )
This circuit is from a 1975 Motorola manual. The FET can be the BF245 and the output voltage...
Speed and direction control for shunt motors (CB5418E)
This circuit for shunt motors was found in an American 1980s documentation. The SCR should be rated...
