Gas ignition (CB7075E)

Details
Written by: Newton C. Braga

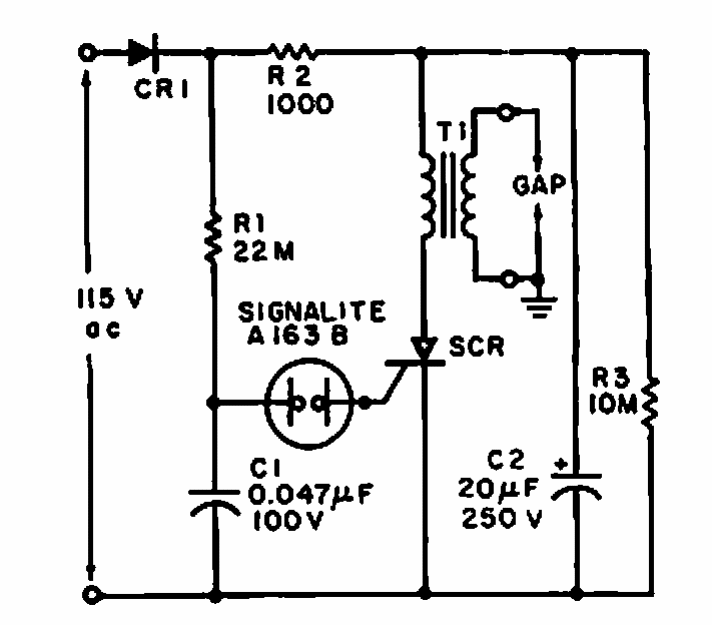

     This circuit for igniting gas flames was found in a 1967 Electronic Design. The SCR firing device is a gas lamp of the time.
