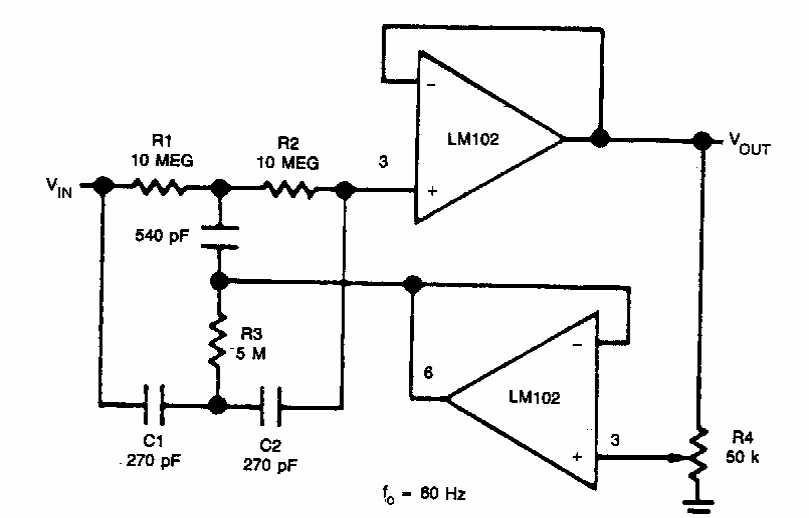

Notch filter (CB7399E)

Details
Written by: Newton C. Braga



     This notch filter was found in National Semiconductor documentation from the 1980s. Operational amplifiers are from that era. The configuration can be adapted to use modern operational amplifiers.
