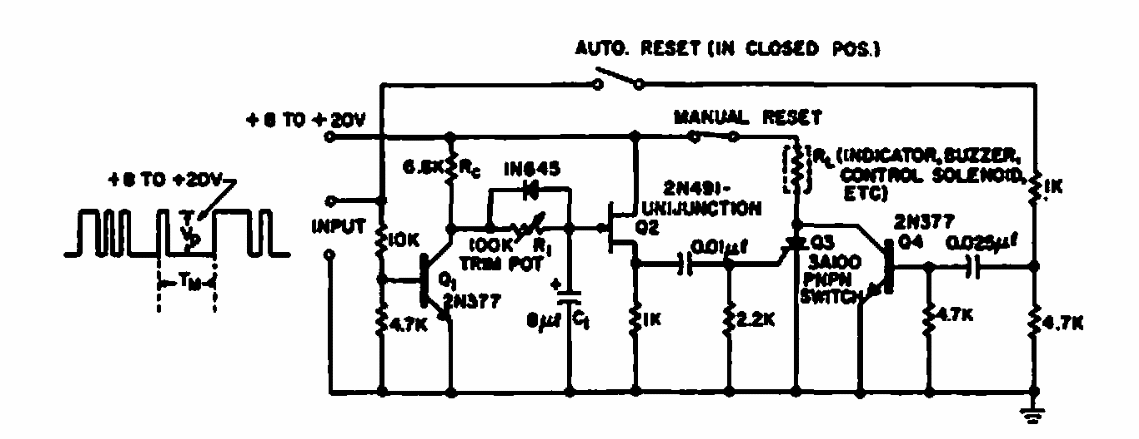

This circuit is from 1964 documentation but can be easily implemented based on current components. Input waveforms and detection are shown next to the diagram.
| Clique na imagem para ampliar |
Missing Pulse Detector (CB6110E)
