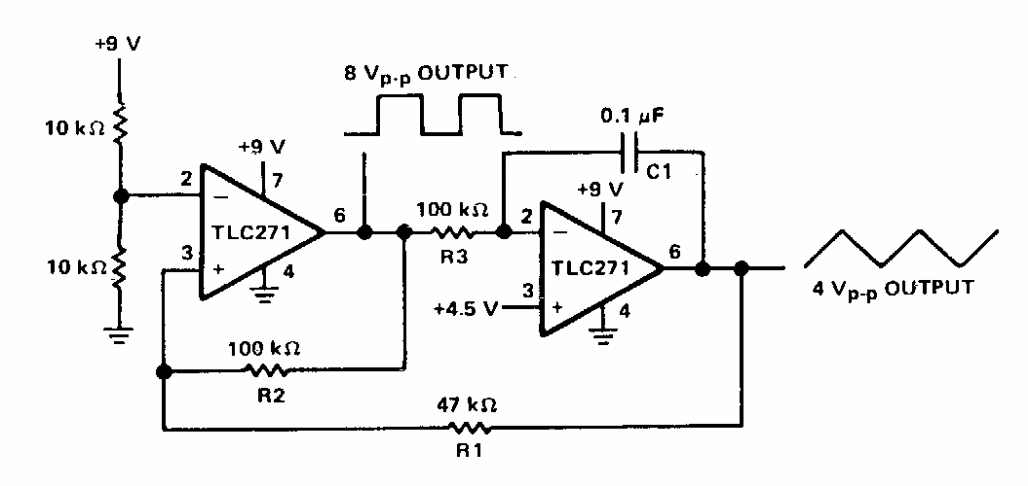

We found this circuit in a Texas Instruments documentation from the 80s. The circuit uses simple power source and the frequency depends on C1 and R1 basically.
| Clique na imagem para ampliar |
Single Power Supply Function Generator (CB6360E)
