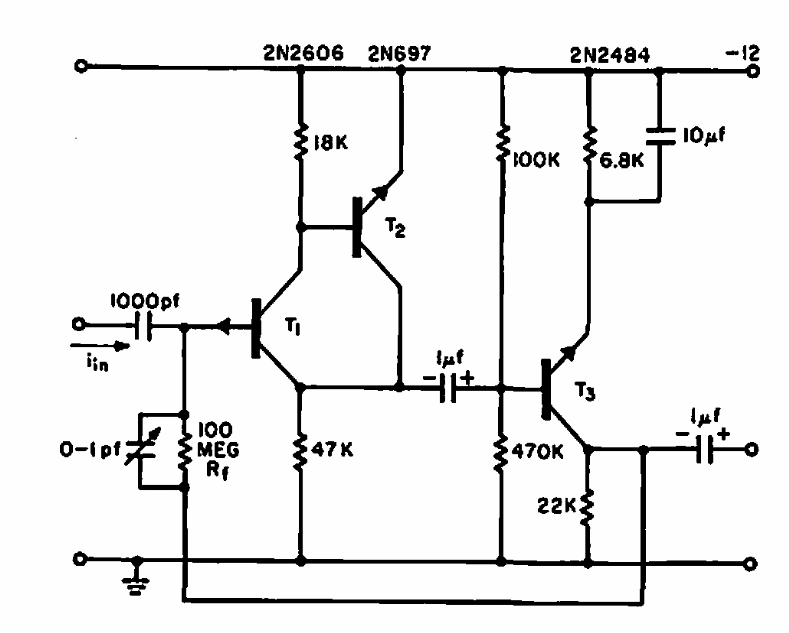

Electrometer with JFET (CB7351E)

Details
Written by: Newton C. Braga



     We found this circuit in a 1964 Electronic Design. The components are from that time, but the circuit can be made with modern equivalent components.
