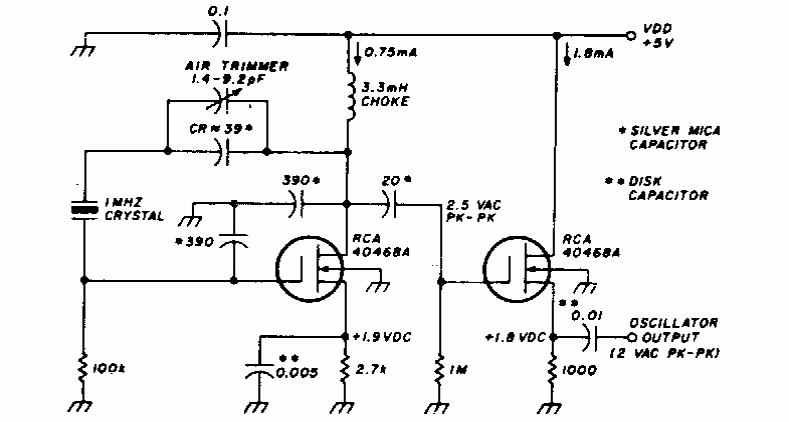

This circuit was obtained from HAM Radio magazine in an 80's issue. The FETs are types of the time and the frequency is determined by the crystal. The circuit operates at voltages from 3 to 9 V.
| Clique na imagem para ampliar |
1 MHz FET Oscillator (CB6148E)
- Details
- Written by: Newton C. Braga
