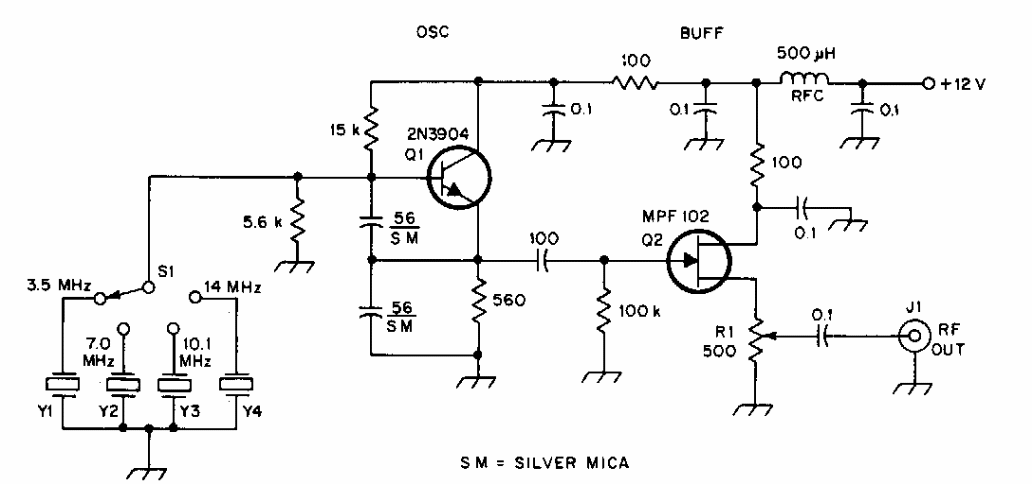

This QST circuit generates 4 frequency signals according to the crystals used. Transistors admit equivalents although the indicated types can still be found with some ease.
| Clique na imagem para ampliar |
Crystal Signal Generator (CB6189E)
