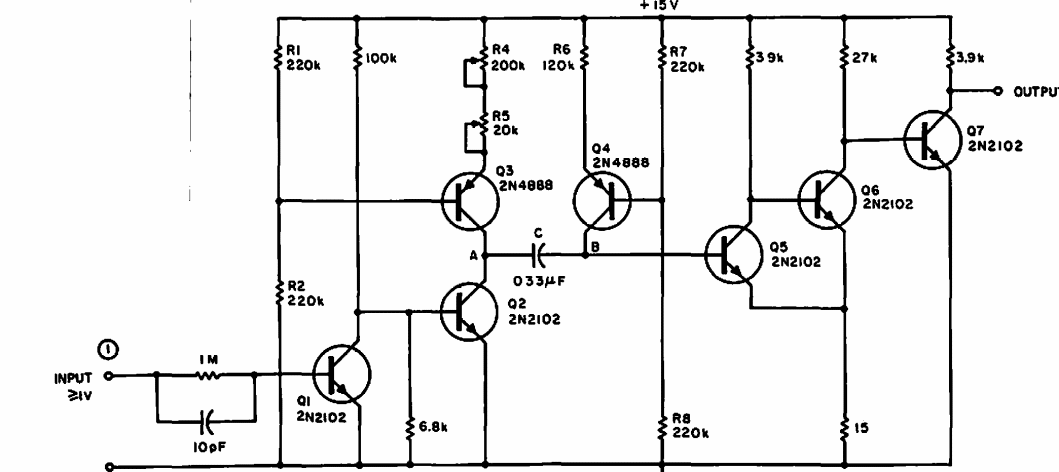

Found in a 1967 Electronic Design, this transistorized circuit compresses and then expands a pulse. The circuit has a double adjustment and the transistors are of the time.
| Clique na imagem para ampliar |
Pulse Compressor and Expander (CB6658E)
- Details
- Written by: Newton C. Braga
