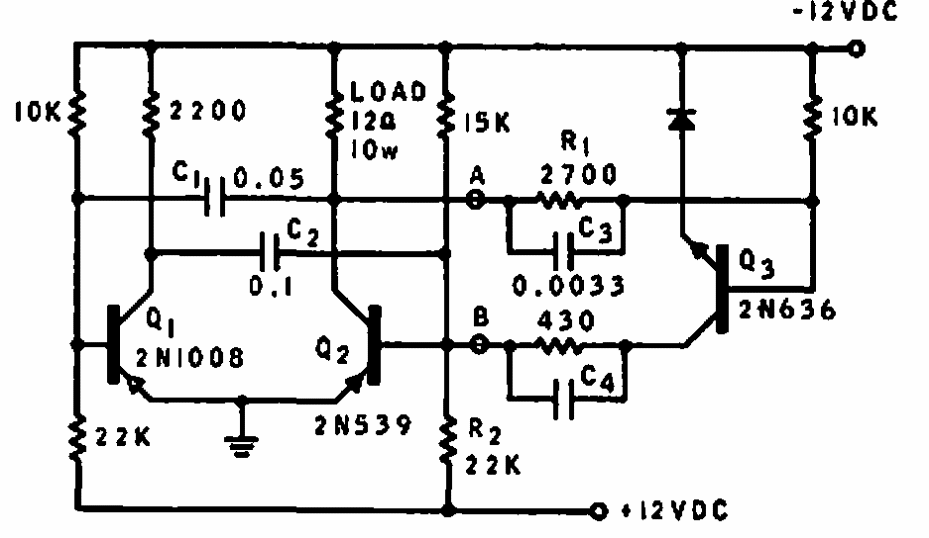

We found this circuit in an old documentation. The circuit can supply loads up to 10W with the original components. The circuit can be designed based on modern components.
| Clique na imagem para ampliar |
Flip Flop with regenerative output (CB6816E)
