SCR mechanical drive (CB6572E)

Details
Written by: Newton C. Braga

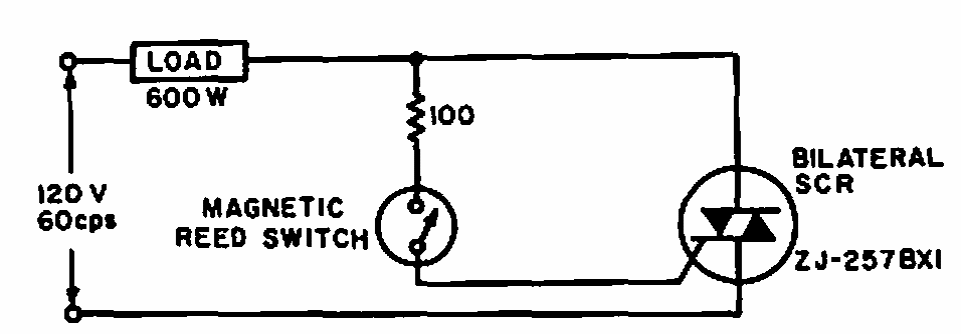

    This contact or reed switch actuation was found in a 1964 Electronic Design. The circuit can be used with sensors and the triac is load dependent.




| Clique na imagem para ampliar |
