Voltage-tuned filter (CB6938E)

Details
Written by: Newton C. Braga

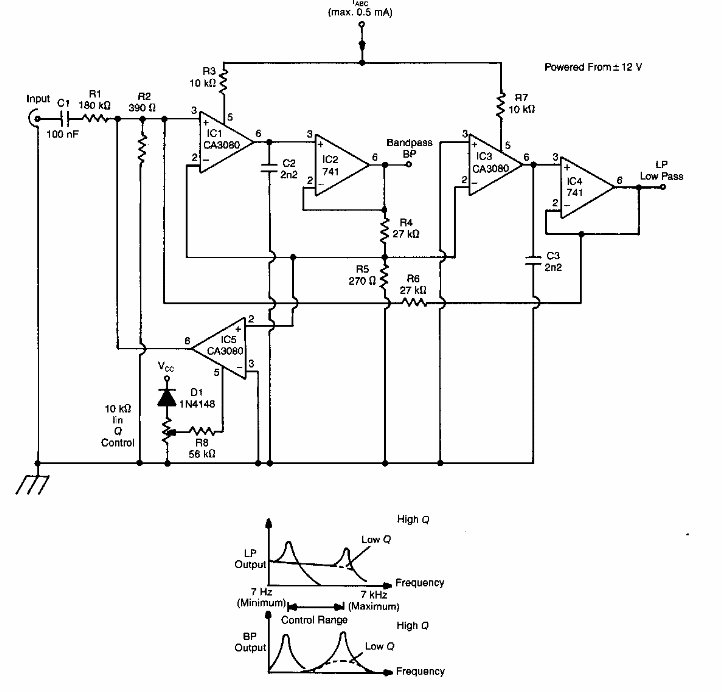

     This 1000: 1 voltage-controlled filter circuit was found in an Electronics Today International in a 1980s edition. The circuit is based on components of the time.
