Frequency amplifier (CB6974E)

Details
Written by: Newton C. Braga

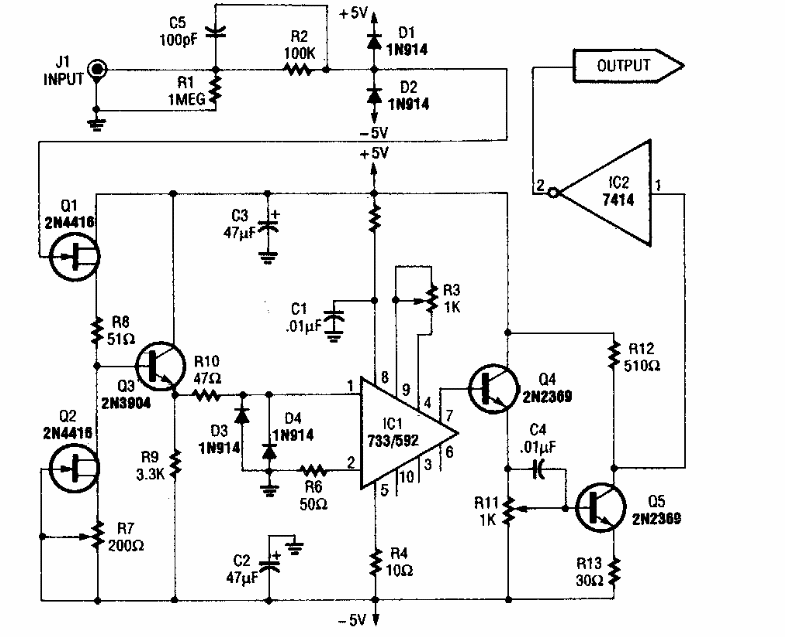

    Found in an old Radio Electronics, this circuit applies to frequency meters for frequencies up to 100 MHz. The input impedance is in the order of 1 M ohm.
