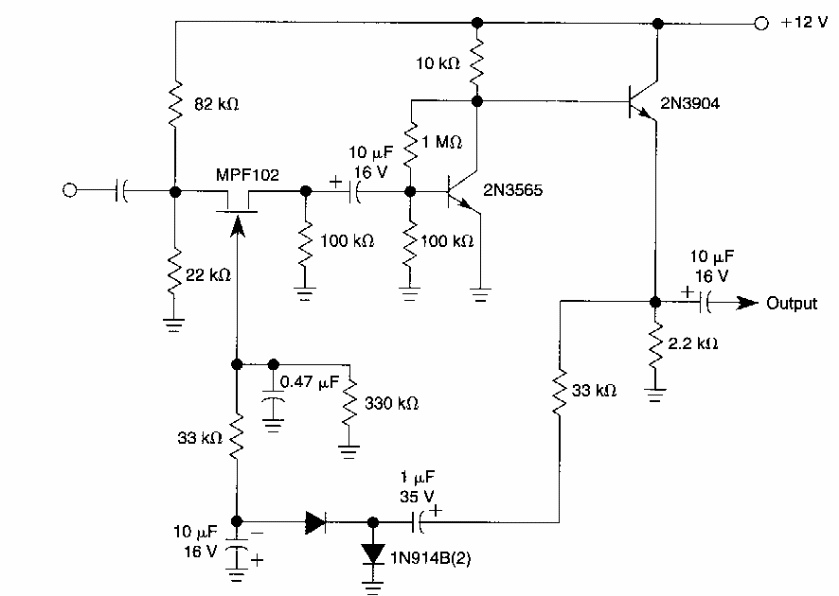

This circuit has an automatic dynamic gain control in a range of 6 dB to 40 dB. We found it in documentation from the 90s. The bipolar transistor is a general purpose type.
| Clique na imagem para ampliar |
Constant volume amplifier (CB7095E)
- Details
- Written by: Newton C. Braga
