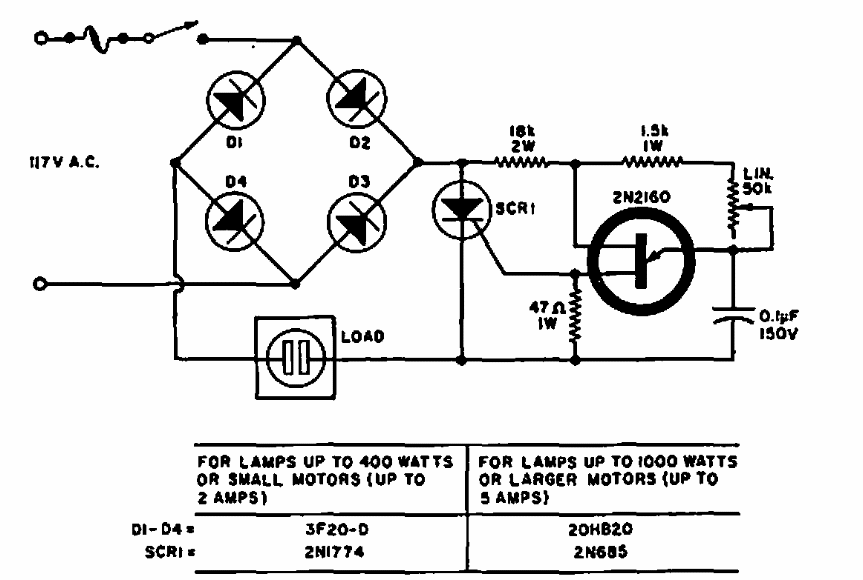

Found in an Electronics World of 1968 this circuit can use any SCR and diodes depending on the load. The circuit is full wave and the unijunction can be 2N2646.
| Clique na imagem para ampliar |
Full wave dimmer with SCR (CB7219E)
- Details
- Written by: Newton C. Braga
