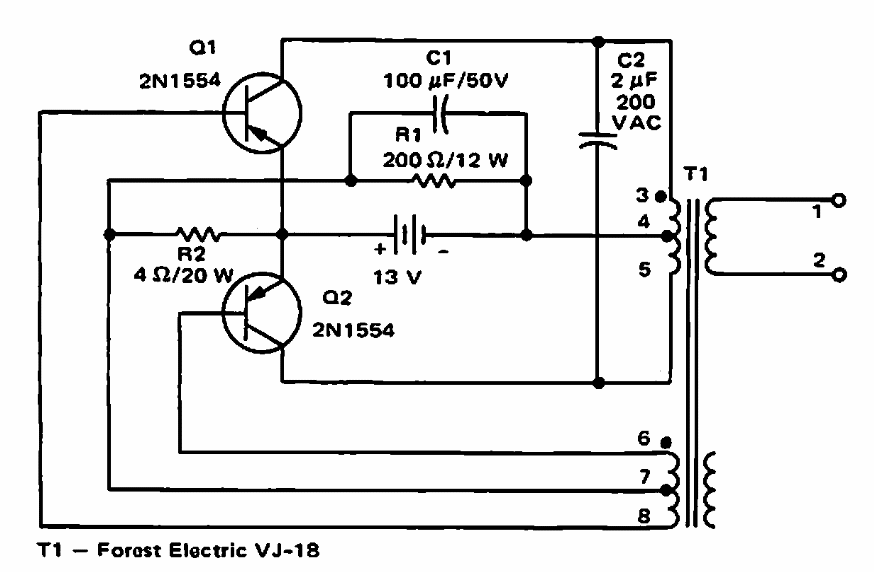

Suggested by a 1968 Motorola power semiconductor manual, this circuit uses a special transformer and transistors from the era. The frequency is 60 Hz.
| Clique na imagem para ampliar |
120 VAC x 120 W Inverter (CB7261E)
- Details
- Written by: Newton C. Braga
