Audio limiter (CB7398E)

Details
Written by: Newton C. Braga

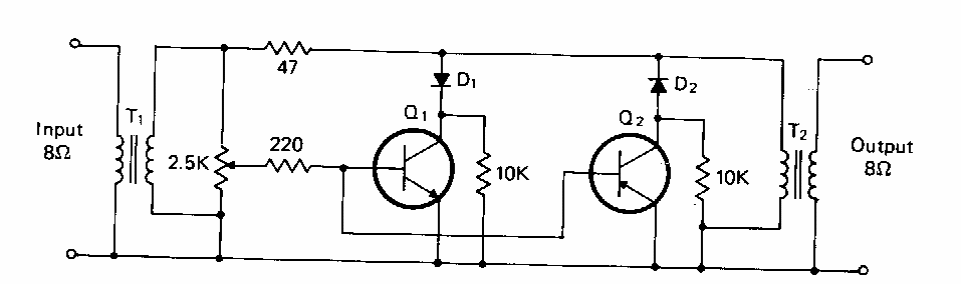

     This circuit was found in documentation from the 1980s. It is powered by the audio signal that must be cut. Transformers are the critical components and transistors are 2N2222.




| Clique na imagem para ampliar |
