Crystal Controlled Signal Source (CB6147E)

Details
Written by: Newton C. Braga

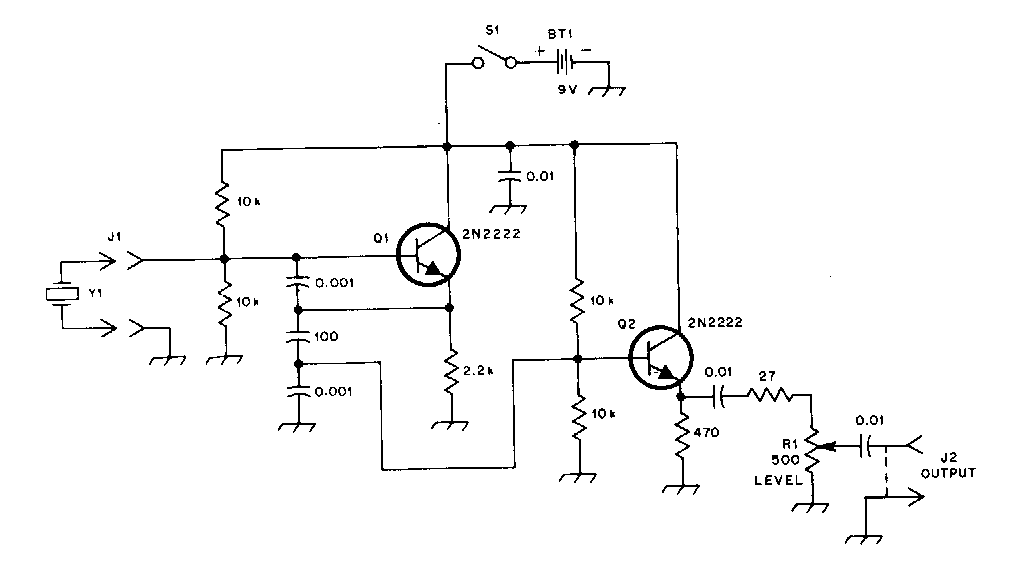

     This circuit was obtained from a 1980's QST magazine. The circuit can generate 1 to 15 MHz signals with 1 Vpp at 50 ohms load. Used transistors are still common today.
