Field Strength Meter CIR13591S CB6237E (CB6237E)

Details
Written by: Newton C. Braga

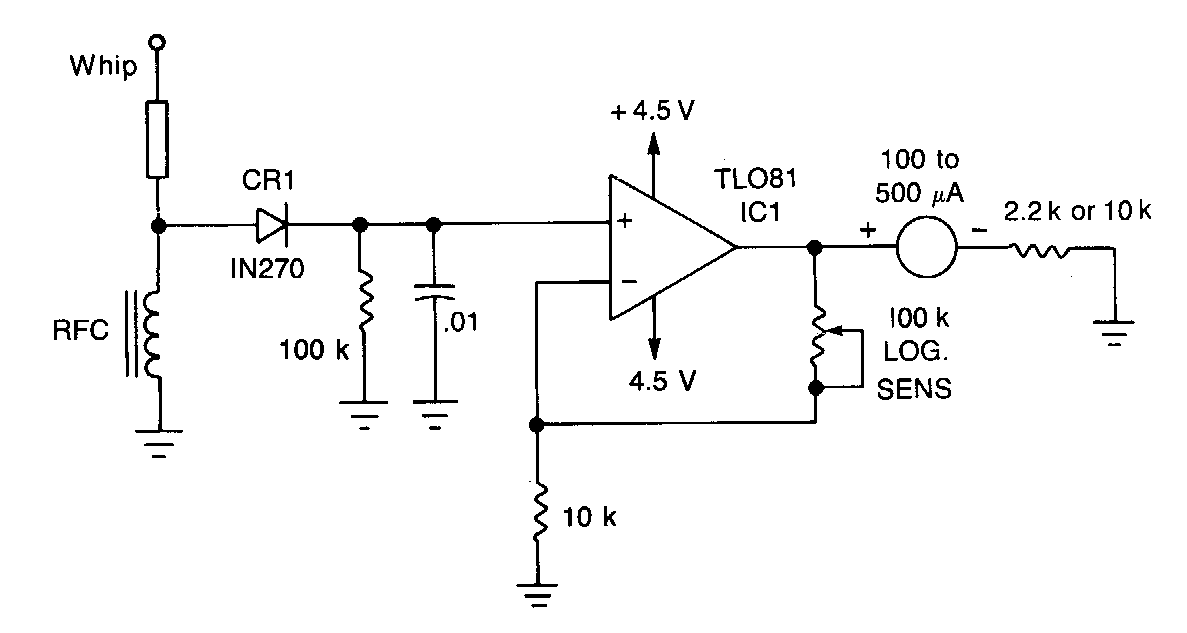

    This high-sensitivity circuit was found in a 1980s documentation. The source can be a 9 V battery with a splitter to make it symmetrical. The shock can be 200 uH or more.
