Very Low Frequency Oscillator (CB6262E)

Details
Written by: Newton C. Braga

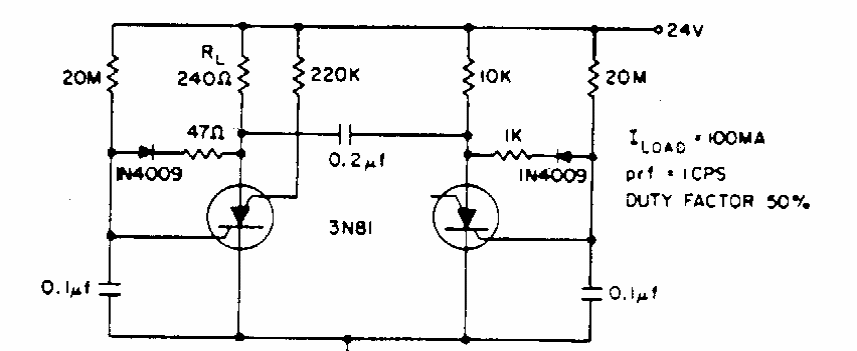

     This PUT oscillator circuit has a frequency of 1 Hz. We find it in a General Electric documentation from the 80's. A recommended application is on flashers.
